IAF IAQ3BIO-SECURITY SYSTEM
Description:
The IAQ3 Bio-Security Systems are state-of-the-art contamination
control systems. IAQ3 utilizes a four-stage abatement system,
consisting of a pre-filter, a high-efficiency DOP filter (or optional HEPA
filter), a set of anti-microbial elements, a catalytic reaction chamber and a
final set of anti-microbial elements, to provide a wide range of biological
agent, toxic gas and hazard material control.
The IAQ3 Bio-Security System features low pressure resistance
for energy efficiency and lower operating costs. Furthermore, by removing
particulate matter and gas contaminants from the environment, building
cleaning and maintenance costs are reduced as well.
Recent tests by Iowa State University confirm that our systems are
effective against bacteria and mold. In effect, our systems can give you the
security of knowing that they can control all your indoor air quality needs.
IAF Clean Air Machines are the only systems on the market that have a proven
test record for killing virtually 100% of bacteria and mold passing through
the system.
Applications:
The IAQ3 was designed specifically for bio-security in today’s
high-tech, high-productivity working environments. It provides efficient
filtration of biological agents, toxic gases and hazardous materials to
protect air quality, as well as create healthier work environments and reduce
Sick Building Syndrome (SBS), Tight Building Syndrome (TBS), and Employee
Health Linkage (EHL). The use of our catalytic reaction chamber in this
system is strongly recommended for use in “tight” or “sick” building
environments where various VOCs, gases, fumes or tobacco smoke are commonly
present.
The IAQ3 is a versatile system ideal for use in office
buildings, hospitals, hotels, universities, schools, auditoriums, museums,
libraries, medical offices, airports, automotive plants, laboratories, and
pharmaceutical plants. The IAQ3 is the obvious choice for any
location where bio-security is an issue and clean air, employee health,
absenteeism, and productivity is a concern.
Features and Benefits:
Pre-Filters:
- High quality, self sealing
- Manufactured of synthetic material
- Easy to install and maintain
- Resistant to chemicals and high humidity
- High dirt loading capacity
- Non-shedding
- Disposable
Anti-Microbial Elements:
- Kills virtually 100% of all bacteria and mold passing through
the system
- Disposable
- 12-month life
Catalytic Reaction Chambers:
- Most effective method available for removing VOCs, solvents,
fumes, odors, aerosols and most hydrocarbons
- Increases re-circulation capacity
- Reduces Sick Build Syndrome, Tight Building Syndrome and
Employee Health Linkage
IAF High Efficiency DOP Filters:
- Various filter efficiencies available
- Resistant to vibration, air volume changes, humidity and
chemicals
- Stable shape guarantees 100% utilization of filter media
- Elastic, non-shedding fibers
- Welded seams for absolute leak-free bonding
- Disposable
- HEPA filter optional
Additional Features:
- Resists growth of molds and spores in filtration media
- Operates to 100% relative humidity
- Easy maintenance
- No tools required

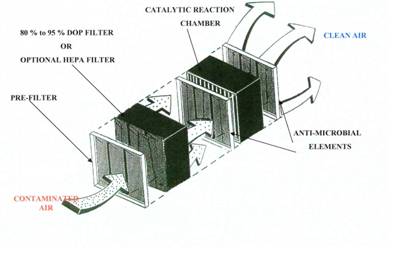

Stage 1
Pre-filters are manufactured of the highest quality non-shedding synthetic
fibers for a long, maintenance-free service life and high dirt loading
capacities.
Stage 2
The 80% to 95% DOP filter provides high efficiencies up to 95% @ 1.0 micron
@ 2,000 cfm. An optional HEPA filter is available.
Stage 3
The first stage of anti-microbial elements kill most of the bacteria and
mold passing through the unit, thereby offering the most effective method
available for eradicating these dangerous health problems.
Stage 4
The catalytic reaction chamber is the most effective method available for
removing toxic gases, ozone and organic vapors discharged from building
materials, office equipment, furnishings and the external environment. The
chamber contains our patented bonded “brick” gas media noted for low
resistance and cleanliness.
Stage 5
A second set of anti-microbial elements kills any residual bacteria or
mold.
